EXPRESS BP – CX EDITION HORSE TRAILER

Category:

The Exiss Express CX Edition horse trailer is a great option for hot climates that require maximum airflow to keep horses comfortable. With aluminum extruded side panels, this economic model provides the durable design of a stock trailer with the luxuries of a horse trailer.



Features

Coupler Type Bumper pull
Load Type Slant load
Trailer Width 7’0″ width
Inside Height 7’2″ inside height
Exterior Sides .040 white side sheets w/ extruded slat outside of horse area
Axles (2) 3,500 lbs. rubber torsion axles w/ electric brakes

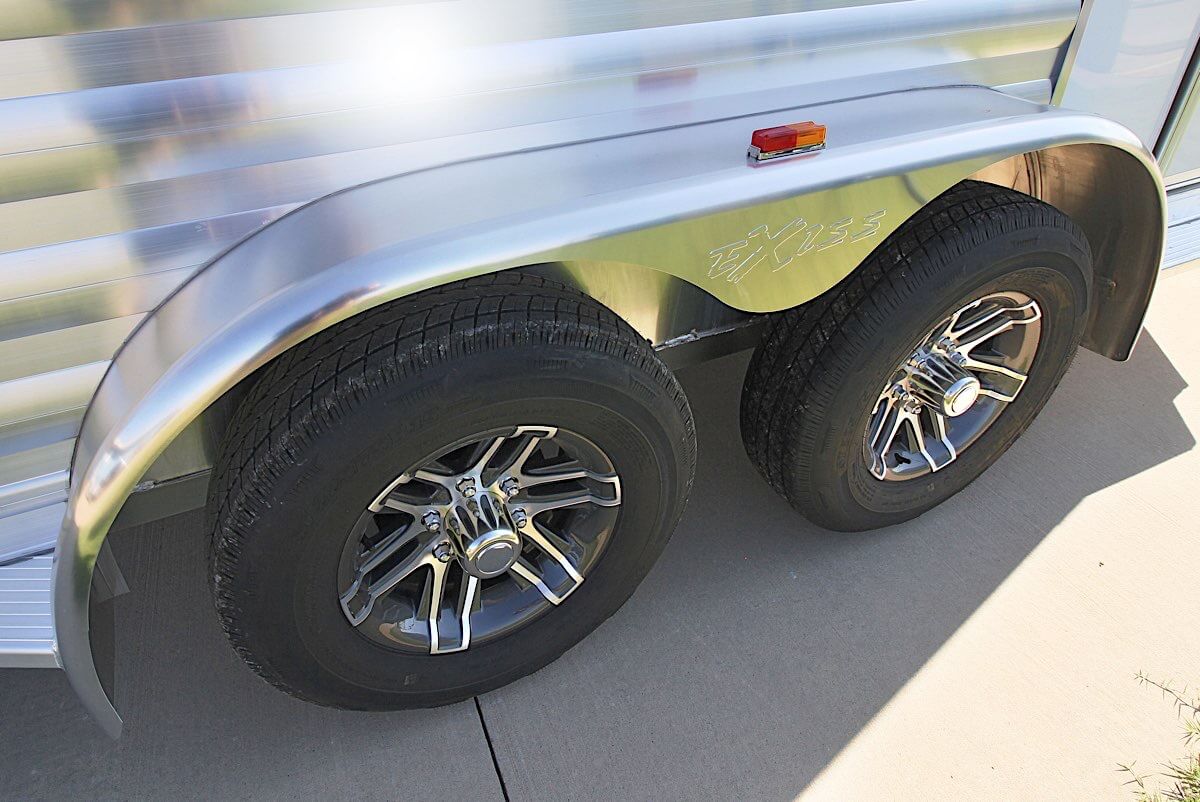

Wheels Five 15” 6 hole aluminum wheels w/ 8 ply tires (includes spare)
Dressing Room 0′ shortwall
Horse Stalls 2H or 3H
Stall Width 40″ stall width
Horse Area Walls Insulated & rubber 48″ high on curbside horse area wall w/ aluminum kickplate behind rubber lining
Horse Area Windows Two air gaps w/ Plexiglas track outside of horse area
Side Unload Door N/A
Rear Tack Area N/A

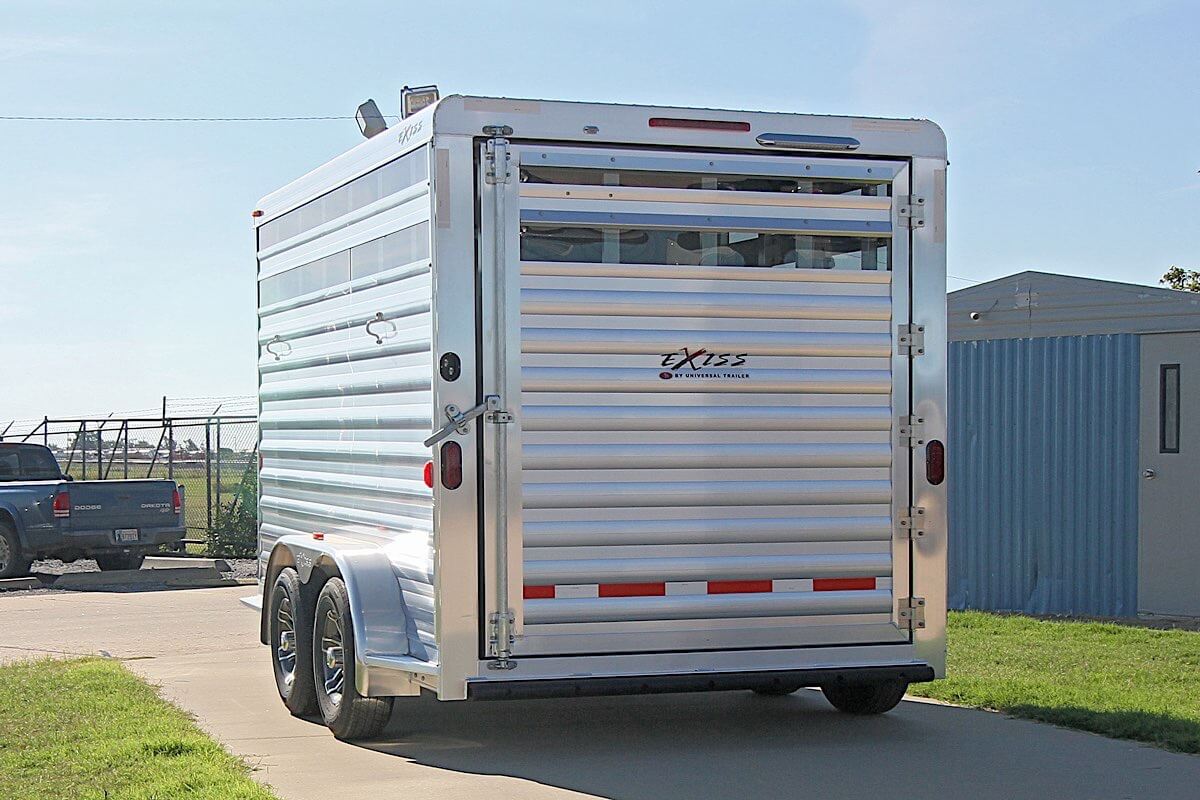

Rear Doors Full-swing rear gate w/ air gaps & Plexiglas track; Single cam lock & lockable hasp on rear gate
Rear Bumper Full-width rear rubber bumper
Roof Single piece aluminum roof w/ one roof vent per stall
Floor Extruded plank flooring w/ 2” x 4” I-beams on 16” centers
Floor Mats Lifetime rubber floor mat in horse area
Running Boards Full length running boards w/ tear-drop fenders
Tie Rings Two inside tie rings and two outside tie rings per horse
Coupler Aluminum V-hitch w/ 2 5/16″ adjustable coupler
Landing Gear 2,000 lbs. top-wind jack w/ wheel
Hitch Safety Breakaway switch w/ battery & slip hook safety chains
Gravel Guard Treadplate gravel guard 16” high on nose
Exterior Lighting LED brake, running lights and rear load light
Interior Lighting One interior LED light per divider in horse area; One LED light in dressing room
Stall Dividers Slant stall dividers w/ body, shoulder and head separator; Fully recessed slam latch for divider
Saddle Rack One adjustable saddle rack per horse on removable post in dressing room

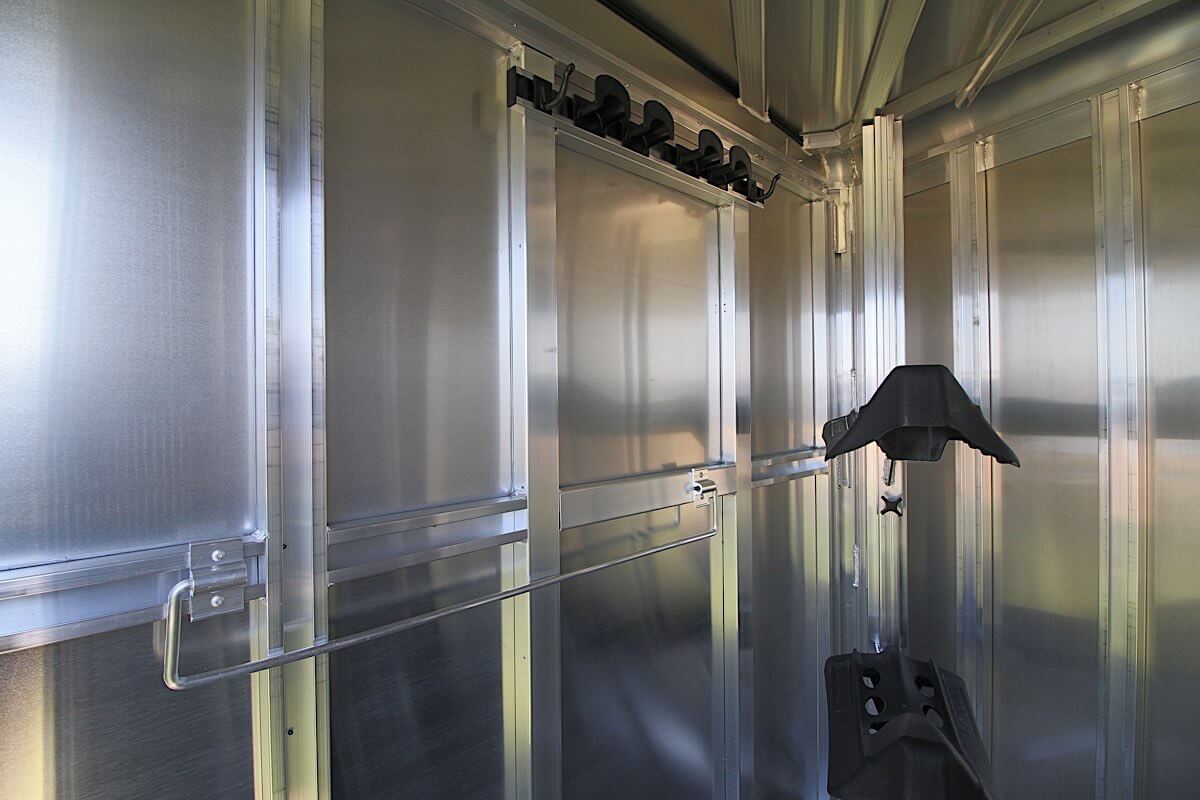

Tack Items Blanket bar, brush tray, clothes rod and six halter hooks
Other Camper door with sliding window in dressing room; Carpeted floor in dressing room; Full-width nylon strap at rear of trailer
Warranty 3/8 transferable warranty

Specifications

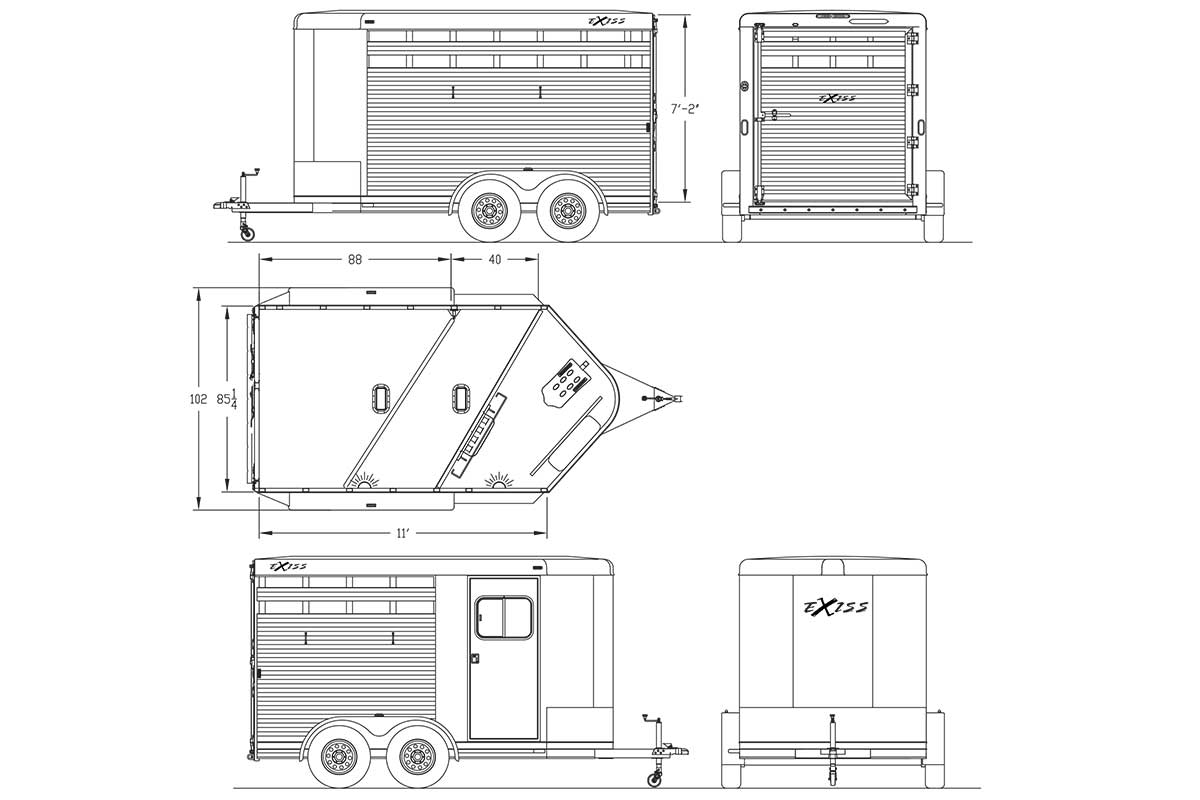

Coupler Type Stalls Width Height Length GVWR Weight Axles
EXPRESS 2H BP – CX Bumper pull 2H 7’0″ 7’2″ 11’0″ 7,000 LBS 2,600 LBS (2) 3,500 LBS
EXPRESS 3H BP – CX Bumper pull 3H 7’0″ 7’2″ 14’4″ 7,000 LBS 3,100 LBS (2) 3,500 LBS
